Metric Screw Pitch Gauge – Iso Thread Identification Tool

Description

A screw pitch gauge is the perfect tool to identify exact TPI or pitch.

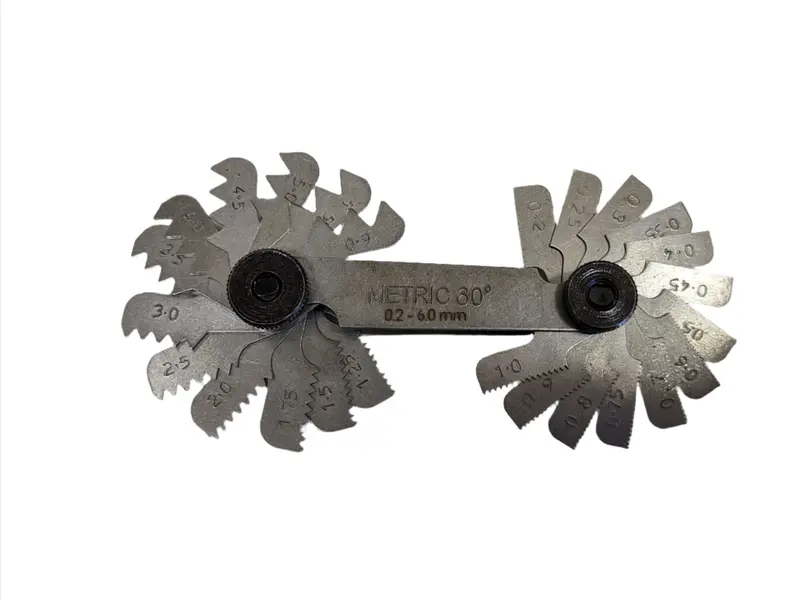

SPG 0.20-6.0mm (25 leaves) .2 .25. 3 .35 .4 .45 .5 .6 .7 .75 .8 .9 1.0 1.25 1.5 1.75 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0

SPG 0.25-2.5mm (28 leaves) .25 .3 .35 .4 .45 .5 .55 .6 .65 .7 .75 .8 .85 .9 1.0 1.1 1.2 1.25 1.3 1.4 1.5 1.7 1.75 1.8 1.9 2.0 2.5

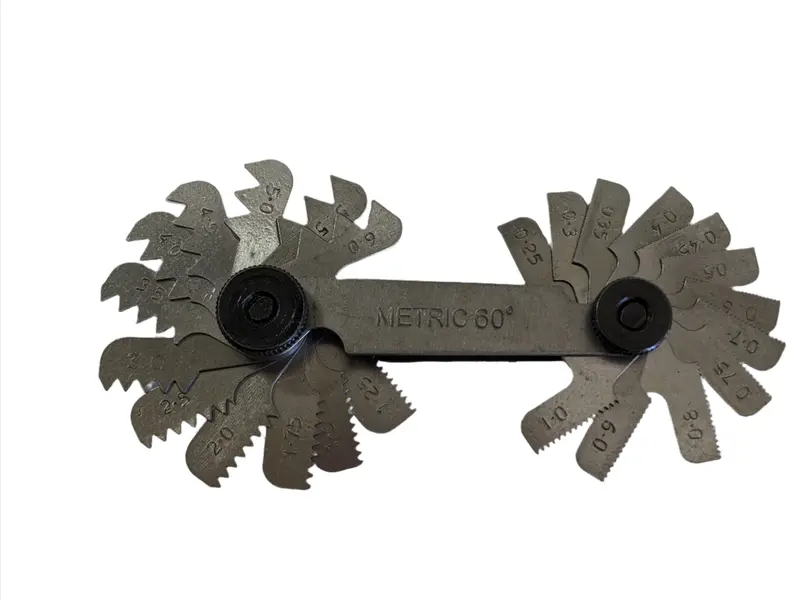

SPG 0.25-6.0mm (24 leaves) .25. 3 .35 .4 .45 .5 .6 .7 .75 .8 .9 1.0 1.25 1.5 1.75 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0

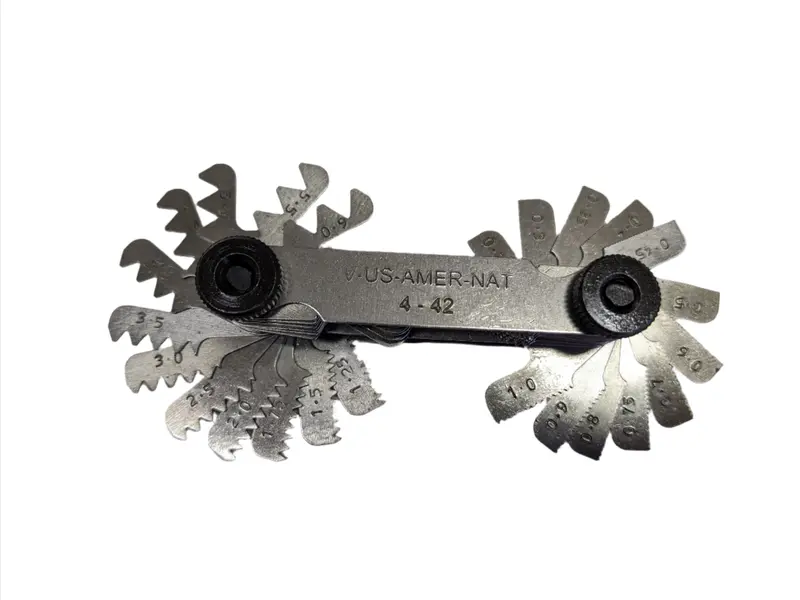

SPG-UN-M 0.25-6.0mm & 4-42 TPI inch (55 leaves)  Metric- .25. 3 .35 .4 .45 .5 .6 .7 .75 .8 .9 1.0 1.25 1.5 1.75 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0
Inch- 4 4.5 5 5.5 6 7 8 9 10 11 11.5 12 13 14 15 16 18 20 22 24 25 26 27 28 30 32 36 38 40 42

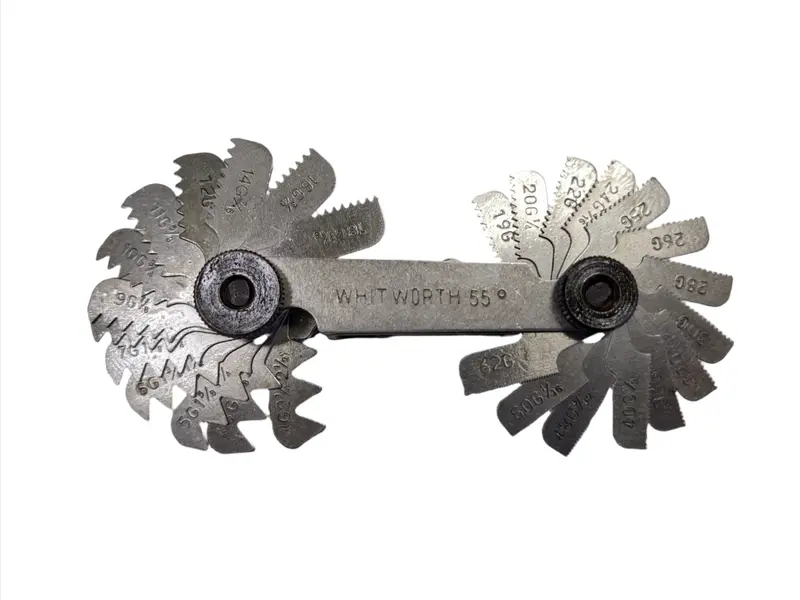

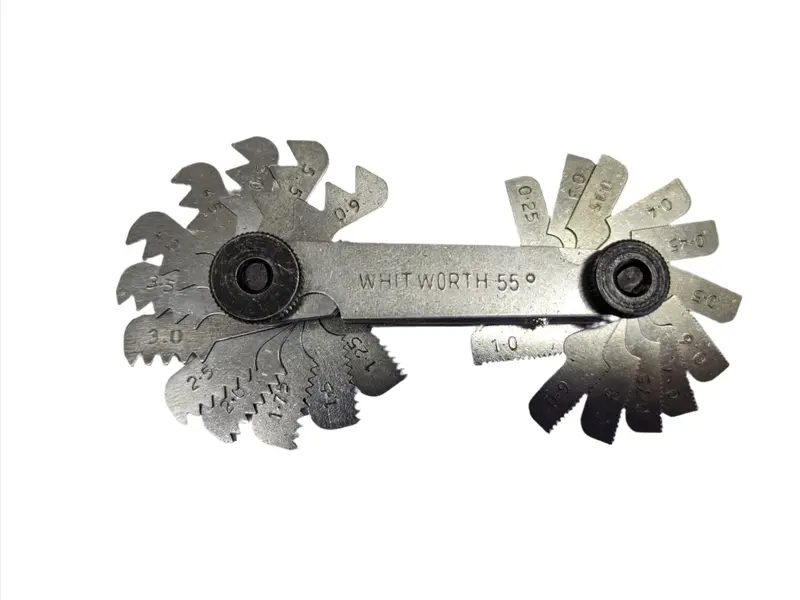

SPG-WM52 0.25-6.0mm & 4-62 TPI 55° Whitworth (52 leaves) Metric- .25. 3 .35 .4 .45 .5 .6 .7 .75 .8 .9 1.0 1.25 1.5 1.75 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0
Whitworth- 4 4.5 5 6 7 8 9 10 11 12 13 14 16 18 19 20 22 24 25 26 27 28 30 32 36 38 40 48 60 62
